NAVAL FORCES #9 and INFOGRAPHICS #22: Naval Nuclear Deterrent

The following artwork was created by H. I. Sutton and it was included in his excellent article published on June 18 of this year entitled The Gods of M.A.D.ness which analyzes the Nuclear Ballistic Missile Submarines that are in service nowadays. Just click on the previous title to learn all the amazing details regarding the current ballistic missile submarines in world's navies as well as other great infographics about submarines in general but especially about submarines designed for special purposes such as Swimmer Delivery Vehicles (SDVs), midget subs and similar craft. For other infographics and information in this blogger-page about Nuclear Ballistic Missile Submarines click here or just the appropriate label.

Today's World's Ballistic Missile Submarines. High resolution image here.

The evolution of Japanese destroyers after WWII

Article written by Jon Harris
Additional information, photos and graphs by D-Mitch

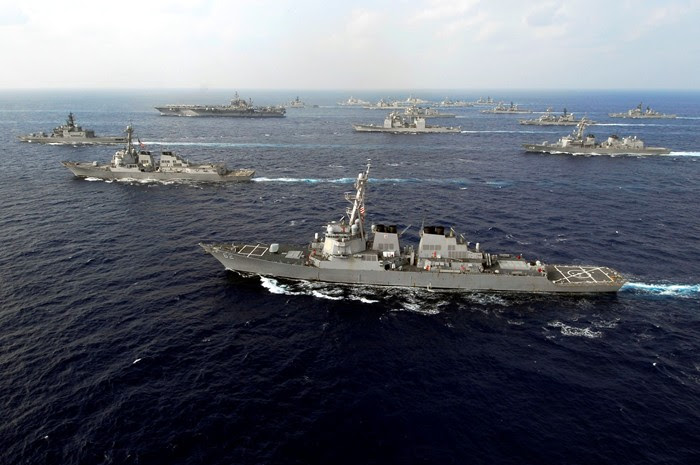

JMSDF destroyers (DDG and DDH) in formation

Since the end of World War Two, Japan has commissioned as many different destroyer type designs as the United States and the former Soviet Union. This exceptional feat has gone little noticed. The Japanese Maritime Self Defense Force (JMSDF) has produced a steady stream of gradually improving designs, culminating in the powerful, well-balanced fleet of today. Their design bureau didn't produce radical forms such as the Russian KYNDA class cruisers, or Swedish VISBY class corvettes. Rather, this island nation developed a variety of platforms designed to defend the homeland and its vital oceanic trade. The application of existing weapons and sensors, primarily of US origin, provided for robust growth, and limited expenditures on research and development.
